Your command center - The power of the overview screen
View all of the critical information about your control panel right from the Overview screen, including, but not limited to:
Active Liquid Level in the Containment Area
Pump Run and Pump Fault Status
Current VFD Frecuency
HOA Switches
Alarm Banner Display: Faults & Alarms
Alarm Test and Silence Buttons
Setting up your pump station controller has never been simplier
Our Pacific 2.0 software revolutionizes the control panel interface by making it easier and more efficient than before!
With our advanced pre-engineered systems, the Hydra and Parabola, a set of start-up screens on our standard 7" HMI touchscreen controller will guide you through a step-by-step process to enter all of the critical settings and have your panel fully operational in under 10 minutes.
With our Trident control system, connect your laptop with an ethernet cable to the PLC to view a comprehensive web interface. No internet access required.
Easily adjust parameter settings and calibrate your liquid level sensors
Have you ever experienced issues calibrating a transducer or have questions about the settings or configuration setup?
Pacific 2.0 is the solution for you
The software walks you through exactly how each setting affects the operation of your pump(s) with a detailed explanation underneath pop-up buttons.
The transducer calibration process provides step-by-step instructions to calibrate your transducer.
1
Transducer Setup and Calibration
2
Pump "On" and Pump "Off" Level Setpoints
3
Level Alarm Activation and Setpoints
Additional features
Customizable for your pump station
Operate up to four pumps on our standard 7” screen. More pumps may be operated on custom panels when upgraded to a larger HMI touchscreen controller.
Load balancing
Configure your panel to alternate pump operation based on pump cycle counts or pump run times
Pump exerciser
Configure your panel to cycle pumps for a set amount of time and frequency. For example, you may exercise the pumps once a month for a 10 seconds.
backup float operation
In the event that the control panel recognizes a fouled 4-20mA signal, it will automatically engage into backup float mode.
compatible with any 4-20mA sensor
In addition to the standard submersible pressure transducer, radar and ultrasonic sensors may be used as well.
Compatible with most variable frequency drivers (vfds)
Any VFD that can be controlled through Modbus is compatible with Pacific 2.0.
secure user accessibility
For added security, you must be logged in to adjust any control panel setting (even for simple adjusments such as toggling HOA switches).
Data logging
Every pump run event or control panel alarm/fault is automatically via a flash drive into CSV format.
Communications
Setup screens for RS485 and TCP/IP configuration (Modubs and BACnet) are provided within the interface for easy system integration.

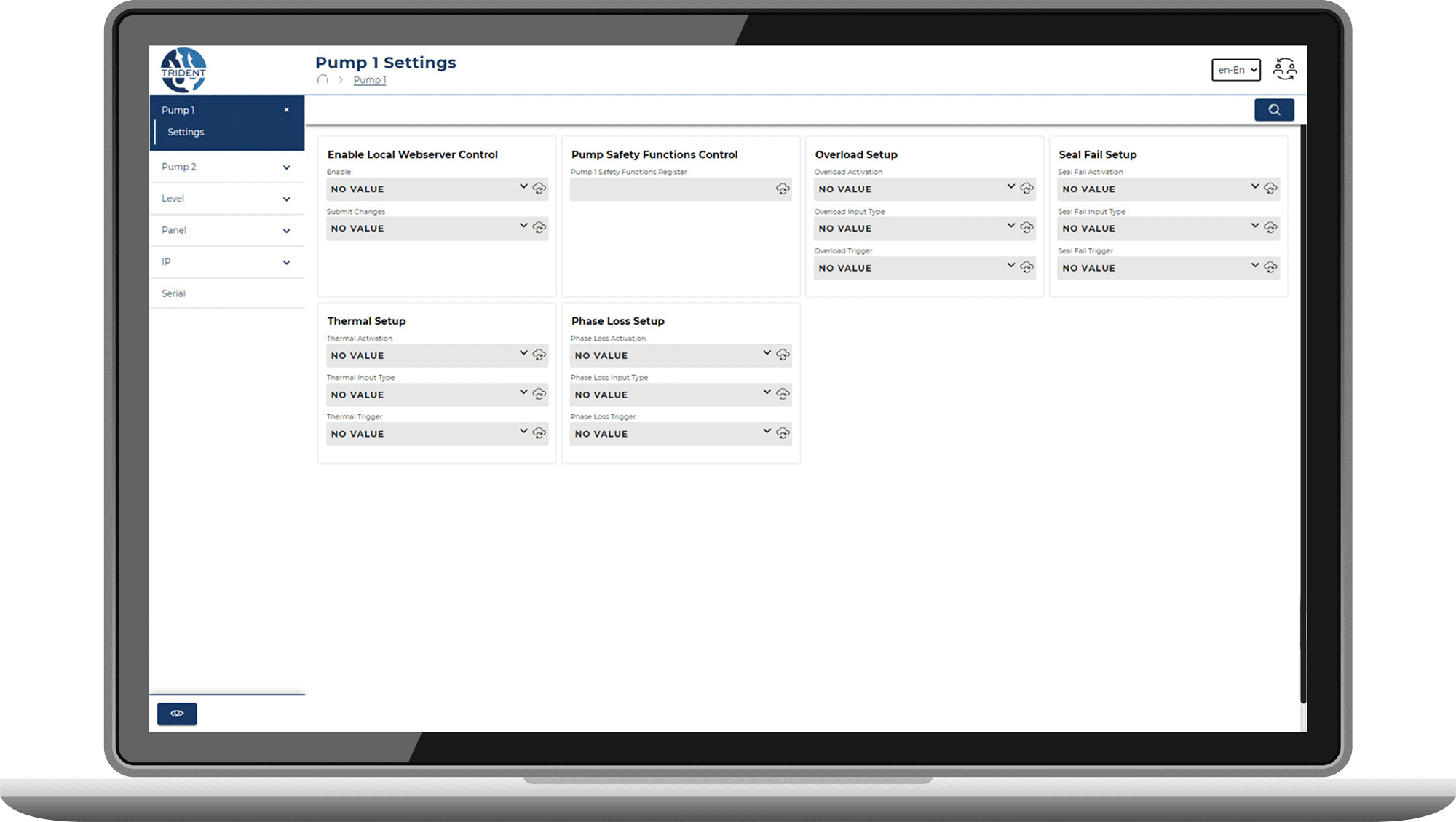

pacific 2.0 web server
Simplifies your plc
The Pacific 2.0 web server comes standard with any PLC-based control panel that does not have and HMI, such as the Trident. The web server requires an ethernet connection between your laptop and PLC, but does not require internet access.
The Pacific 2.0 web server provides an easy-to-navigate web interface witch clear status indication of panel operation and settings.
Are you interested in learning more about pacific 2.0?
Speak with one of our expert sales engineers today!
