FLOAT PRO® CONTROL SWITCH

PRODUCTS / SENSOR PRO™ SERIES
LITERATURE

Reliable Liquid Level Monitoring

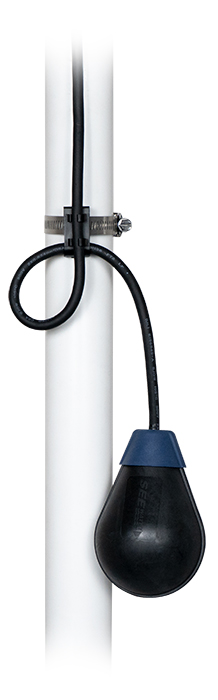

The Float Pro® control switch is a narrow-angle or wide-angle control switch used to monitor liquid levels in wastewater and sewage applications. The Float Pro® series allows for a multitude of different float styles and functions.

REQUEST A QUOTE

Float Pro® Series Control Switches/Floats - Normally Open - Narrow Angle
FPC0N20*
FPC0N30
FPC0N50
FPC0N100
Narrow Angle Float Switch with 20' Cord and Mounting Clamp
Narrow Angle Float Switch with 30' Cord and Mounting Clamp
Narrow Angle Float Switch with 50' Cord and Mounting Clamp
Narrow Angle Float Switch with 100' Cord and Mounting Clamp
Note: FPC0N20* N/O Narrow Angle Float Switch is standard on Knight Series®, WS Series®, Trident®, Hydra®, and Parabola® control products.
Float Pro® Series Control Switches/Floats - Normally Open - Wide Angle
FPC0W20
FPC0W30
FPC0W50
FPC0W100
Wide Angle Float Switch with 20' Cord and Mounting Clamp
Wide Angle Float Switch with 30' Cord and Mounting Clamp
Wide Angle Float Switch with 50' Cord and Mounting Clamp
Wide Angle Float Switch with 100' Cord and Mounting Clamp
Float Pro® Series Control Switches/Floats - Normally Closed - Narrow Angle
FPC1N20
FPC1N30
FPC1N50
FPC1N100
Narrow Angle Float Switch with 20' Cord and Mounting Clamp
Narrow Angle Float Switch with 30' Cord and Mounting Clamp
Narrow Angle Float Switch with 50' Cord and Mounting Clamp
Narrow Angle Float Switch with 100' Cord and Mounting Clamp
Float Pro® Series Control Switches/Floats - Normally Closed - Wide Angle
FPC1W20
FPC1W30
FPC1W50
FPC1W100
Wide Angle Float Switch with 20' Cord and Mounting Clamp
Wide Angle Float Switch with 30' Cord and Mounting Clamp
Wide Angle Float Switch with 50' Cord and Mounting Clamp
Wide Angle Float Switch with 100' Cord and Mounting Clamp

Specifications

  • Simple installation
  • Includes mounting hardware
  • Designed for effluent, sewage, and dewatering applications
  • 2 7/8” diameter, 4 1/2” long, high impact, corrosion-resistant, polypropylene housing for use in sewage and water up to 140°F (60°C)
  • Electrical Requirements: 5 amps; 125VAC/250VAC, 50/60 Hz
  • Cable Type: Flexible 18 gauge, 2 conductor (UL, CSA) SJOW
  • Maximum Water Depth: 30’ (9 meters), 13 PSI (90 kPa)
  • UL listed
