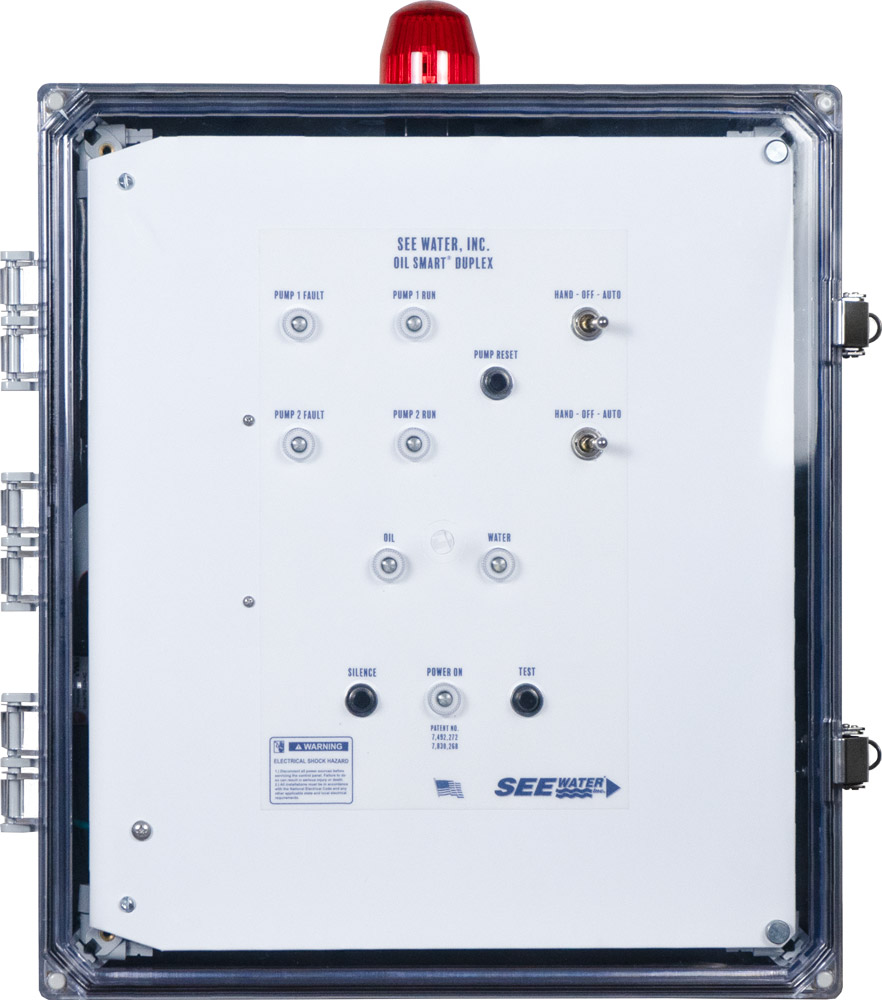

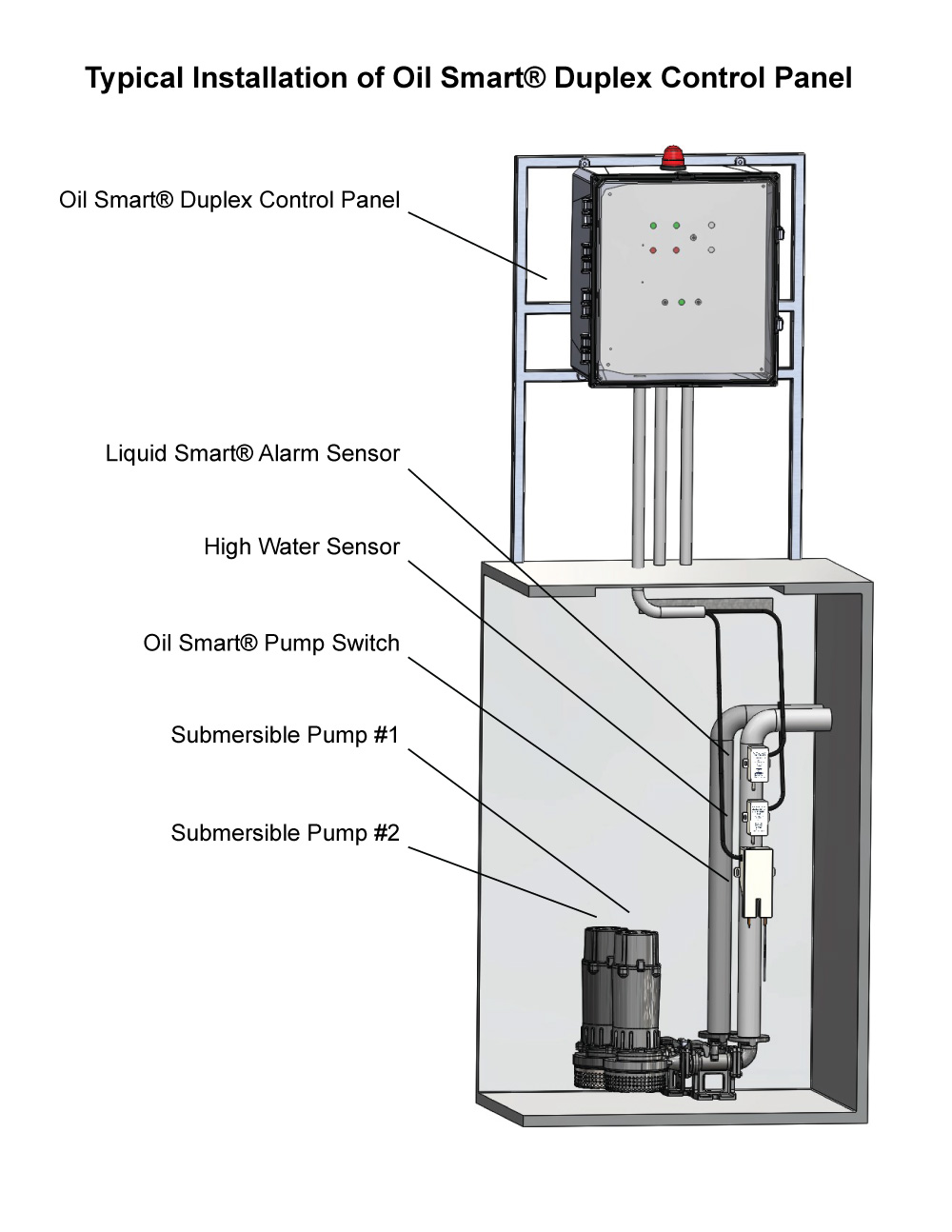

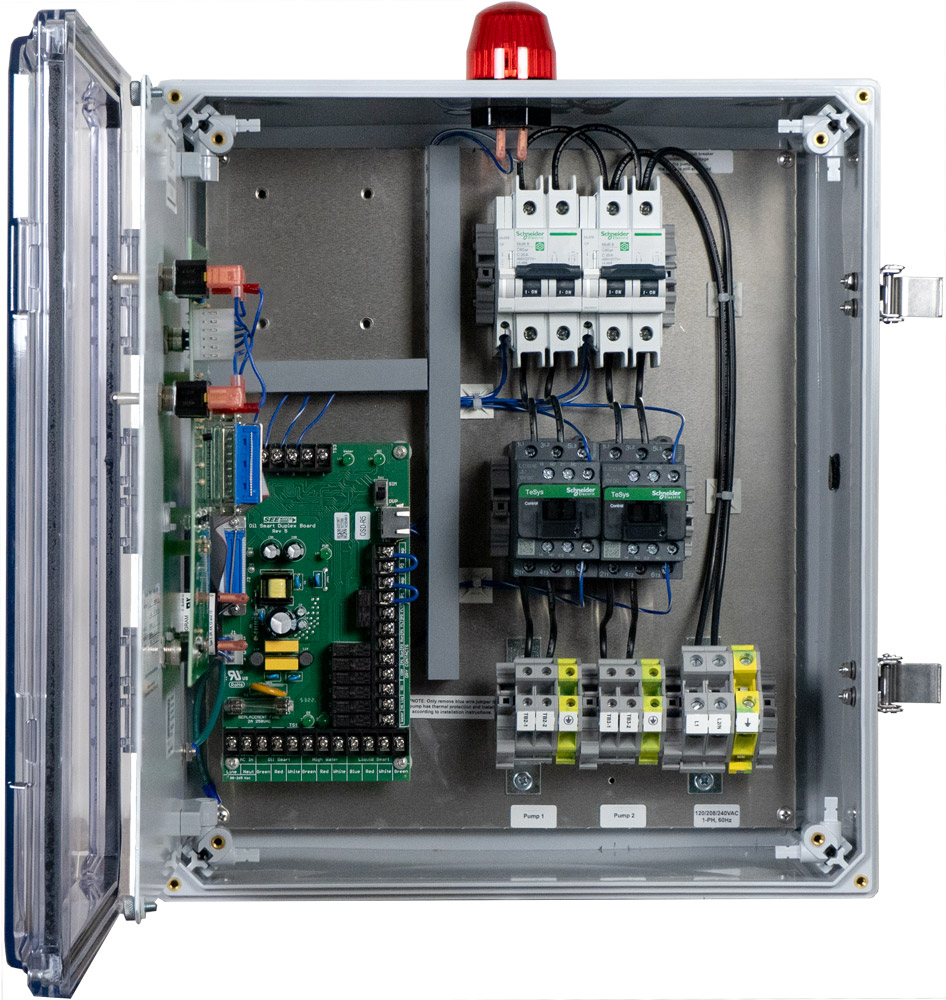

The Oil Smart® single-phase duplex control panel will control two 120/208/240V single-phase pumps in elevator sumps, transformer containment areas, and any application where there is a need to remove water while containing oil. See Water duplex control panels come standard with a clear front NEMA 4X rated enclosure, Oil Smart® components, IEC-rated contactors, and motor protective switches. It is also compliant with Elevator Code ASME A17.1 and state/federal regulations. All panels are UL listed for the United States and Canada and come with a five-year warranty.
Note: Thermal overload protection is generally provided in single-phase pumps. To request a specific overload on the Oil Smart® single-phase models, contact the factory. Each panel includes a motor protective switch that will provide accurate pump circuit breaker protection.
Add Pump Portal® remote pump monitoring to this control panel!
The Oil Smart® system uses capacitive sensors that are factory-calibrated for immediate operation to differentiate between oil and water. In contrast to conductive sensors, capacitive sensors are insulated by oil and do not require ongoing maintenance.
Unlike other systems that utilize error-prone floats as their primary oil and water sensors, Oil Smart® technology uses reliable solid-state sensors that do not require any moving parts. In addition, See Water’s Oil Smart® sensors have been third-party factory-tested for over 1 million cycles.
The Liquid Smart® Alarm Sensor can be placed at any predetermined level. Every application is different, and the adjustable alarm allows the sensor to be placed at the actual high liquid level, ensuring that nuisance alarms do not occur.
Not all jobs or applications are equal, which is why Oil Smart® technology allows for the flexibility of being paired with any submersible pump.
Our capacitive technology allows for hand testing of the sensors, whereas conductive technology requires more steps to test when the system is installed. We offer the only true plug-and-play system in the industry. The Oil Smart® Plug-and-Play System (OSS-100) is the easiest elevator sump pump system to install on the market. With over 25 years of proven field results, Oil Smart® is the preferred solution by environmental specialists and engineers for preventing catastrophic oil spills.
*Additional cord length greater than 20’. Specify after C. Example: (OSD1P-1021-C50). Indicates 50’ cord lengths for all components.
