TRIDENT^® INDUSTRIAL CONTROL PANELS

Features

• NEMA 3R rated painted steel enclosure with a lockable latch and dead-front inner door
• IEC rated motor starter with adjustable overload
• Pump control visible indicators: 22mm Pump #1 and #2 hand-off-auto (H.O.A.) switch, green pump run lights, red pump fault lights, and power on light
• Alarm visible indicators: Red beacon alarm light, and seal fail leak alarm test and silence buttons
• Alarm horn sounds 85 decibels at 10 feet
• Float operation:
  • Simplex: Off, On, High Level

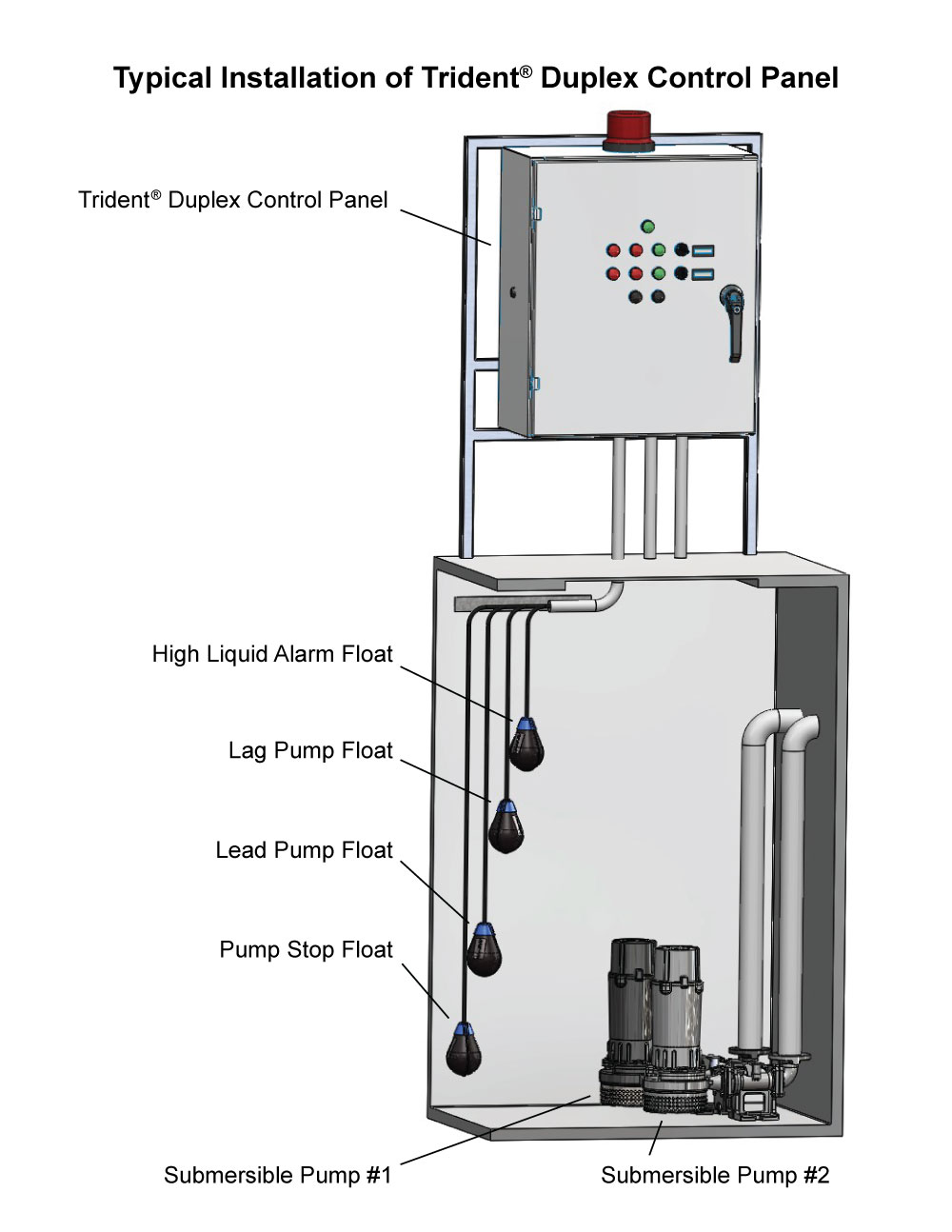

  • Duplex: Off, Lead, Lag, High Level
  • Triplex: Low Level, Off, Lead, Lag, Lag/Lag, High Level
• Elapsed time meters
• System Integration: Supports Modbus RTU/TCP, BACnet^® MSTP/IP
• UL 508A listed
• Two-year limited warranty
• Easy access to webserver
• Flip switch for transducer and float mode

Applications

• Wastewater, Stormwater and Industrial Lift Stations
• Commercial
• Municipal

Custom Options

• 5 = Level Transducer, 5 PSI, Max Water Level 11 ft., Type: Wastewater
• 10 = Level Transducer, 10 PSI, Max Water Level 23 ft., Type: Wastewater
• 15 = Level Transducer, 15 PSI, Max Water Level 35 ft., Type: Wastewater
• 20 = Level Transducer, 20 PSI, Max Water Level 46 ft., Type: Wastewater
• 10X = Intrinsically Safe Level Transducer, 10 PSI, Maximum Water Level 23 ft., Type: Wastewater, 50' Cable
• 20X = Intrinsically Safe Level Transducer, 20 PSI, Maximum Water Level 46 ft., Type: Wastewater, 50' Cable
• RPRO = Radar Sensor, Max Level Range 32', 4-20mA + RS485, 12-30VDC, 50' Cable
• UPRO = Ultrasonic Sensor, Max Level Range 15', 4-20mA, 12-30VDC, 50' Cable

Note: The Trident^® with transducer will come standard with backup floats (3 for simplex systems, 4 for duplex systems, and 5 for triplex systems).

• 65 =  Redundant Off Float & Alarm
• AF = Alarm Flasher
• AH = Anti Condensation Heater
• BB = Battery Backup 5 Ah
• C = Additional Cord Length Per Foot Per Component*
• CO = Convenience Outlet (User to supply 120 VAC)
• GR = Generator Receptacle, Includes Transfer Switch (Total Amps 125 Max)
• IS = Intrinsically Safe - Simplex (Float Operated System)**
• ISD = Intrinsically Safe - Duplex (Float Operated System)**
• IST = Intrinsically Safe - Triplex (Float Operated System)**
• LA = Lightning Secondary Surge Arrestor
• MD = Main Disconnect - Through Door Style; Up to 100.0 FLA
• MD2 = Main Disconnect - Through Door Style; 100.0 to 230 FLA
• PM = Phase Monitoring - Ph Loss, Ph Unbalance, Undervoltage, Overvoltage
• PX = Pump Portal^® Wireless Remote Panel Control and System Monitoring***
• S3 = No Floats
• SS4 = Upgraded Enclosure (304 Stainless Steel)
• SS6 = Upgraded Enclosure (316 Stainless Steel)

Note: Example when adding options to the TRD panel: TRD-T31-PX-SS4

*Additional cord length greater than 20’: Specify after C. Example: (TRD-T31-C50) Indicates 50’ cord lengths for all floats.

**To include an intrinsically safe transducer, please contact us.

***Additional fee will apply for monthly or annual subscription.
