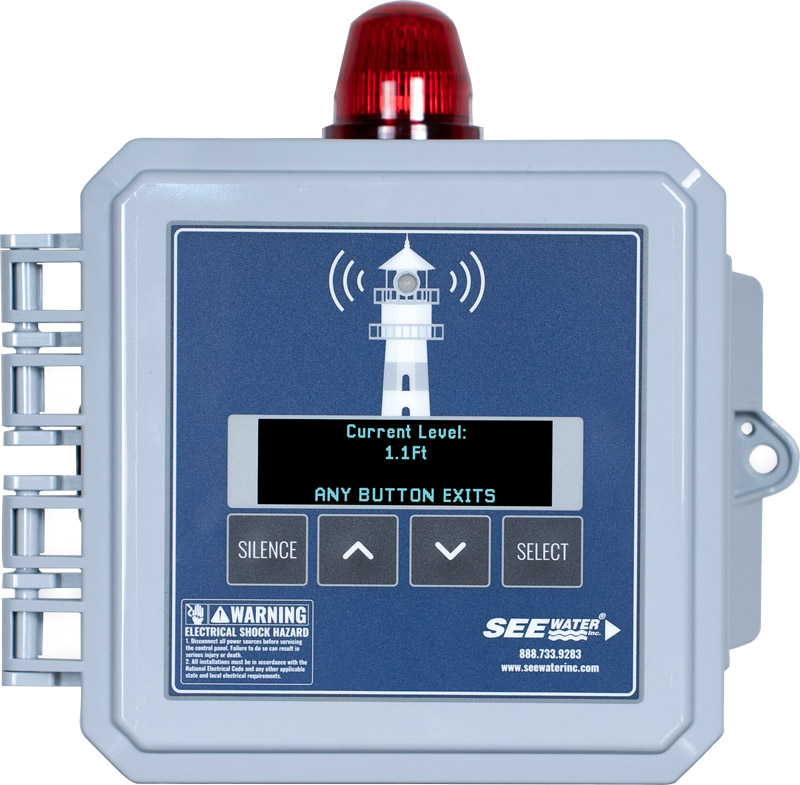

LIGHTHOUSE™ LIQUID LEVEL ALARM

PRODUCTS / LIQUID LEVEL ALARMS
LITERATURE

The Lighthouse™ Liquid Level Alarm comes with a user-friendly interface for level monitoring applications. It can be used with up to two level transmitters as well as low and high level floats to provide continuous tank liquid level and alarm readings. This device offers you complete flexibility to adjust the system to your desired alarm set points and is easy to set up in minutes!

REQUEST A QUOTE

Models
LH7001
Voltage
120/208/240VAC

Add Pump Portal® remote pump monitoring to this control panel!

Features

  • 120VAC, single phase
  • 12VDC input for backup battery (battery is charging while AC power is connected)
  • Indoor/Outdoor NEMA 4X rated enclosure (6” x 6” x 3”): Heavy duty polycarbonate
  • Red beacon alarm light
  • Audible alarm sounds 85 decibels at 10’
  • Compatible with two 4-20mA 24V level transmitters
  • Includes panel-mounted digital display with four-button membrane
  • Adjustable set points for high level and low level alarms
  • User-configurable passcode access
  • Remote monitoring dry contacts
  • Power On LED indicator (indicates cellular signal strength with Pump Portal® option)
  • UL Listed for United States and Canada

Applications

  • Industrial sumps
  • Holding tanks
  • Residential tanks
  • Lift Stations

Options

  • 5 = Level Transducer, 5 PSI, Max Water Level 11 ft., 50' Cable, Type: Wastewater
  • 10 = Level Transducer, 10 PSI, Max Water Level 23 ft., 50' Cable, Type: Wastewater
  • 15 = Level Transducer, 15 PSI, Max Water Level 35 ft., 50' Cable, Type: Wastewater
  • 20 = Level Transducer, 20 PSI, Max Water Level 46 ft., 50' Cable, Type: Wastewater
  • BB = 12V Battery Backup for Alarm Circuit
  • BF = Include (1) High Level Backup Float & (1) Low Level Backup Float with 50’ Cables
  • PX = Pump Portal® Wireless Remote Communication
  • RPRO = Radar Sensor, 45 PSI, Sensing Range 33 ft., 50' Cable
  • UPRO = Ultrasonic Sensor, 45 PSI, Sensing Range 15 ft., 50' Cable

Lighthouse™ Digital Display


Settings Menu

Use the Settings Menu to adjust the Max. Sensor Ranges, Sensor Offsets, High/Low Level Alarms, and Passcode Settings. This area is protected if a passcode is enabled.


Operation Mode

Alarms are only triggered in Operation mode. High/Low Level Alarms are triggered by the float switch or analog level sensors.
