TRANSDUCER PRO™ SUBMERSIBLE LEVEL TRANSMITTER

PRODUCTS / SENSOR PRO™ SERIES
LITERATURE

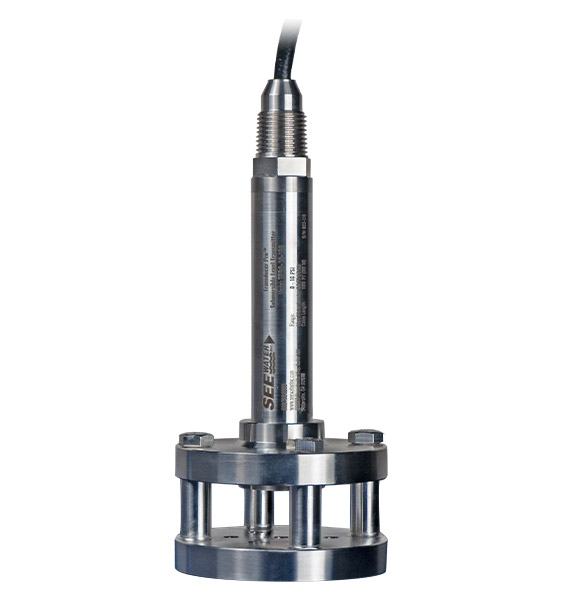

The Transducer Pro™ Submersible Level Transmitter is specifically designed to measure the liquid level in a wastewater or slurry tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, which is encased in 316 stainless steel housing. Transducer Pro™ is perfect for wastewater and slurry applications with features to protect the unit from these demanding applications.

The large diameter 316 stainless steel diaphragm seal is non-clogging and damage-resistant to floating solids. It comes equipped with a 270-pound tensile strength shielded and vented cable. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The vent is protected with a maintenance-free filter, which prevents particulate or water droplets from entering the transducer.

REQUEST A QUOTE

Model
TPRO-5-50
TPRO-10-50
TPRO-15-50
TPRO-20-50
TPRO-5-100
TPRO-10-100
TPRO-15-100
TPRO-20-100
TPRO-X-10-50*
TPRO-X-20-50*
Max Water Level
11 ft or 3 m
23 ft or 7 m
35 ft or 11 m
46 ft or 14 m
11 ft or 3 m
23 ft or 7 m
35 ft or 11 m
46 ft or 14 m
23 ft or 7 m
46 ft or 14 m
Pressure Upper Limit
5 psi
10 psi
15 psi
20 psi
5 psi
10 psi
15 psi
20 psi
10 psi
20 psi
Cable Length: ft (m)
50 ft or 15 m
50 ft or 15 m
50 ft or 15 m
50 ft or 15 m
100 ft or 30 m
100 ft or 30 m
100 ft or 30 m
100 ft or 30 m
50 ft or 15 m
50 ft or 15 m
*This model is intrinsically safe, and not UL Listed.

Features

  • Excellent chemical compatibility with 316 SS construction and ETFE cable
  • Lightning and surge protection
  • Maintenance-free vent filter
  • Large diameter, non-clogging, damage-resistant, 316 SS diaphragm seal

Applications

  • Wastewater
  • Sludge pits
  • Clarifiers
  • Digesters
  • Aluminum tanks
  • Chemical storage tanks
  • Oil tanks
  • Sumps
  • Reservoirs
