THREE PHASE SIMPLEX DEMAND WS3P-TP PUMP CONTROL PANEL

PRODUCTS / PUMP PANELS
LITERATURE

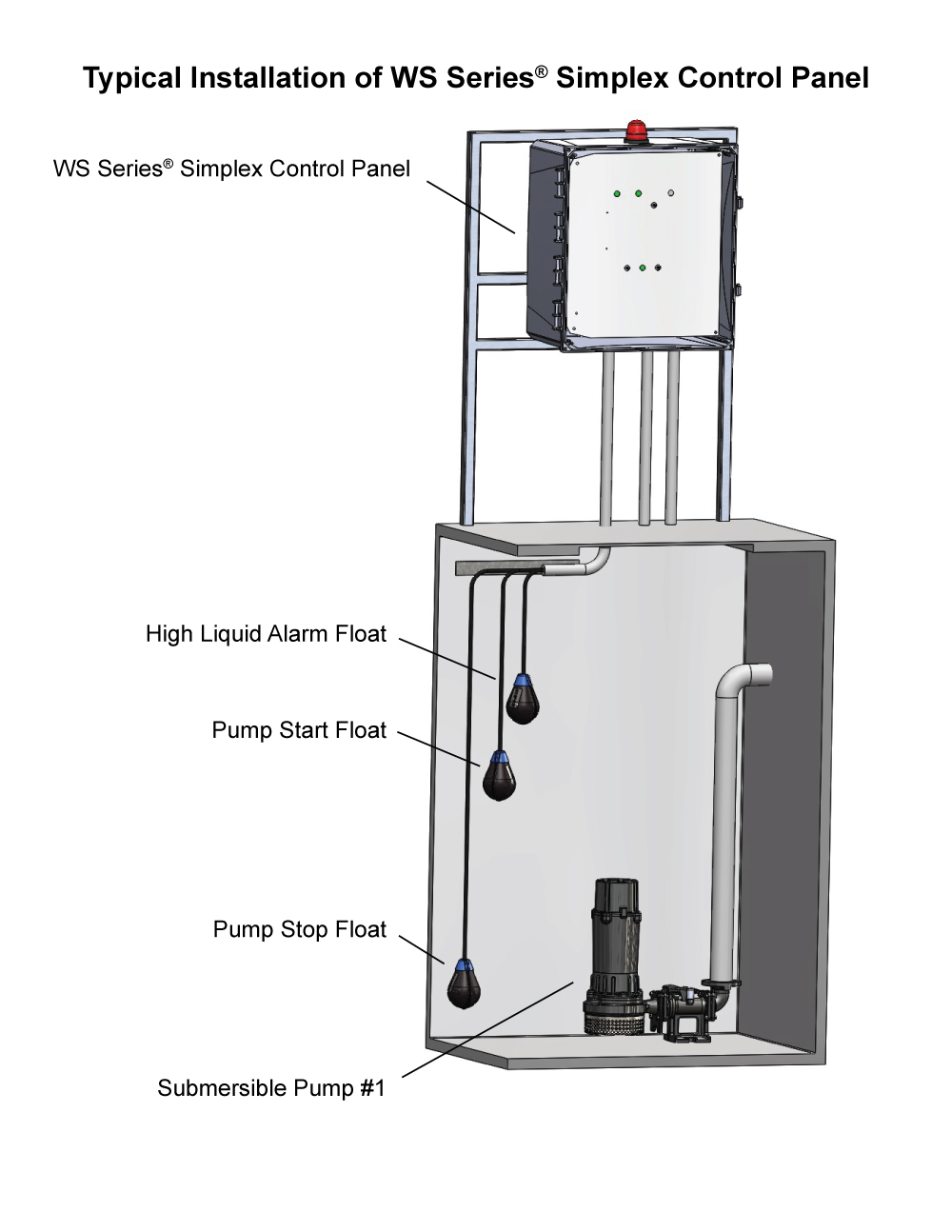

The WS Series® three-phase simplex control panel will control a 208/240/480V three-phase pump in sewage pump chambers, sump pump basins, and lift stations. See Water simplex control panels come standard with a clear front NEMA 4X rated enclosure, an IEC-rated contactor, and a motor protective switch. All panels are UL listed for the United States and Canada, and come standard with a five-year warranty.

REQUEST A QUOTE

Model
WS3P-TP-3001
WS3P-TP-3002
WS3P-TP-3003
WS3P-TP-3004
WS3P-TP-3005
WS3P-TP-3006
WS3P-TP-3007
WS3P-TP-3008
WS3P-TP-3009
WS3P-TP-3010
WS3P-TP-3011
WS3P-TP-3012
WS3P-TP-3013
WS3P-TP-3014
Voltage
208/240/480
208/240/480
208/240/480
208/240/480
208/240/480
208/240/480
208/240/480
208/240/480
208/240/480
208/240/480
208/240/480
208/240/480
208/240/480
208/240/480
Full Load Amps
1.0-1.6
1.6-2.5
2.5-4.0
4.0-6.3
6.0-10.0
9.0-14.0
13.0-18.0
17.0-23.0
20.0-25.0
24.0-32.0
30.0-40.0
37.0-50.0
48.0-65.0
65.0-115.0

Add Pump Portal® remote pump monitoring to this control panel!

Features

  • UL listed for the United States and Canada (panel and controls)
  • Indoor/Outdoor NEMA 4X rated enclosure: Heavy duty polycarbonate with stainless steel lockable latches
  • Pump control visible indicators: Pump hand-off-auto (H.O.A.) switch, green Pump Run light, red Pump Fault light with reset button, and Power On light
  • Alarm visible indicators: Red beacon alarm light, alarm test and silence buttons
  • Alarm horn sounds at 85 decibels at 10 feet
  • Remote monitoring by dry contacts: High Liquid, Pump Fault, Pump Run
  • Upgraded pump protection: Motor protective switch (branch circuit protection, adjustable overload and disconnect) and a thermal cutout with indicator

Applications

  • Sewage pump chambers
  • Grinder pumps
  • Sump pump basins
  • Lift stations

Custom Options

  • 24 = Pump Exerciser
  • 28 = Power On Dry Contact (Normally Open)
  • 3R = Painted Steel Enclosure
  • 65 = Redundant Off Float & Alarm
  • AF = Alarm Flasher
  • AH = Anti Condensation Heater
  • BB = Battery Backup
  • C = Additional Cord Length Per Foot Per Component*
  • CC = Cycle Counter w/ LCD Display and Reset - Simplex
  • CCD = Cycle Counter w/ LCD Display and Reset - Duplex
  • CCT = Cycle Counter w/ LCD Display and Reset - Triplex
  • CO = Convenience Outlet (User to supply 120 VAC)
  • ET = Elapsed Time Meter w/ LCD Display and Reset - Simplex
  • ETD = Elapsed Time Meter w/ LCD Display and Reset - Duplex
  • ETT = Elapsed Time Meter w/ LCD Display and Reset - Triplex
  • GR = Generator Receptacle, Includes Transfer Switch
  • IS = Intrinsically Safe - Simplex
  • ISD = Intrinsically Safe - Duplex
  • IST = Intrinsically Safe - Triplex
  • LA = Lightning Secondary Arrestor
  • MD = Main Disconnect - Through Door Style; Up to 100.0 FLA
  • MD2 = Main Disconnect - Through Door Style; 100.0 to 230 FLA
  • PM = Phase Monitoring
  • PX = Pump Portal® Wireless Remote System Monitoring
  • SF = Seal Failure Circuit w/ Indicator Lights - Simplex
  • SFD = Seal Failure Circuit w/ Indicator Lights - Duplex
  • SFT = Seal Failure Circuit w/ Indicator Lights - Triplex
  • S3 = No Floats Option
  • SS4 = Upgraded Enclosure (304 Stainless Steel)
  • SS6 = Upgraded Enclosure (316 Stainless Steel)

*Additional cord length greater than 20’: Specify after C. Example: (WS3P-TP-3001-C50) Indicates 50’ cord lengths for all floats.
